Power Management & Energy Harvesting

Designing resilient, efficient IoT sensor systems for real-world conditions

Learning Objectives

Master the fundamentals of power-efficient IoT design

Understand core power and energy equations for IoT design

Compare energy harvesting options for remote sensors

Learn to optimize uptime using power mode strategies

Core Engineering Formulas

Master the fundamental equations for power-efficient IoT design

Power (P)

P = V Γ— I

Voltage (V) multiplied by Current (I) gives instantaneous power consumption in watts.

Example: 3.3V Γ— 15mA = 49.5mW

Energy (E)

E = P Γ— t

Power (P) over time (t) determines total energy consumption in watt-hours.

Example: 49.5mW Γ— 8h = 396mWh per day

Battery Life

Life = Capacity Γ· Avg Current

Battery capacity (mAh) divided by average current draw (mA) gives operating hours.

Example: 2000mAh Γ· 50mA = 40 hours

Duty Cycle

% = (On Time Γ· Total) Γ— 100

Ratio of active time to total cycle time, expressed as percentage.

Example: (1min Γ· 15min) Γ— 100 = 6.67%

Efficiency

Ξ· = (P_out Γ· P_in) Γ— 100

Output power divided by input power, multiplied by 100 for percentage efficiency.

Example: (4.5W Γ· 5.0W) Γ— 100 = 90%

Energy Density

Wh/kg or Wh/L

Energy capacity per unit mass (Wh/kg) or volume (Wh/L) for battery comparison.

Example: Li-ion: 150-250Wh/kg, Lead-acid: 30-50Wh/kg

πŸ”§ Practical Engineering Tips

Real-world insights for applying these formulas in IoT projects

Calculation Rules

  • β€’ Always add 20-30% safety margin to calculations
  • β€’ Use peak/RMS values appropriately for measurements
  • β€’ Account for temperature derating (-2% capacity per 10Β°C)
  • β€’ Consider aging effects (3-5% capacity loss per year)

Measurement Tips

  • β€’ Use precision multimeter with Β΅A range capability
  • β€’ Measure with current shunt resistors (0.1Ξ© typical)
  • β€’ Account for startup inrush current (10-100x normal)
  • β€’ Monitor supply voltage sag under peak loads

Common Pitfalls

  • β€’ Quiescent currents often overlooked (10-100Β΅A)
  • β€’ Battery capacity drops with high C-rates (Peukert effect)
  • β€’ Radio transmissions: 100-300mA bursts
  • β€’ Temperature coefficient: -0.5%/Β°C for Li-ion

Optimization Strategies

  • β€’ Use lowest voltage that meets requirements
  • β€’ Implement progressive sleep modes
  • β€’ Batch data transmissions
  • β€’ Use hardware timers instead of software delays

Industry Benchmarks

  • β€’ Excellent IoT design: <500Β΅A average current
  • β€’ Good power efficiency: >80% DC-DC conversion
  • β€’ Target duty cycle: <1% for multi-year battery life
  • β€’ Deep sleep current: <10Β΅A for optimal designs

Quick Reference

Units Conversion:
1W = 1000mW
1Ah = 1000mAh
1Wh = V Γ— Ah

Professional Battery Life Calculator

REAL-WORLD PHYSICS
Typical: 1000-5000 mAh
From energy budget calc
-40Β°C to 85Β°C

Advanced Configuration

Battery Life
40.0 hours
Continuous operation
Days
1.7 days
24/7 runtime
Months
0.06 months
Approximate duration
C-Rate
0.025C
Discharge rate

Real-World Analysis

Nominal Capacity: 2000 mAh
Effective Capacity: 1600 mAh
Peukert Loss: -2.5%
Temperature Loss: 0.0%
Voltage Sag: 0.05V
Power Consumption: 185 mW
Daily Energy: 4.44 Wh/day
Weekly Energy: 31.1 Wh/week
Self-Discharge Loss: 1.3 mAh/month
Annual Battery Cost: $547/year

Battery Health Assessment

Efficiency Rating Excellent
Replace Every
1.7 days

Quick Test Scenarios

Professional Engineering Tips

Real-World Factors:
  • β€’ Aging: 3-5% capacity loss per year
  • β€’ Temperature: -2% per 10Β°C below 25Β°C
  • β€’ C-rate: Higher discharge = less capacity
  • β€’ Voltage sag: Check minimum operating voltage
Design Guidelines:
  • β€’ Add 20-30% safety margin
  • β€’ Target <0.5C discharge rate
  • β€’ Consider 80% DoD for Li-ion
  • β€’ Monitor temperature in field

Professional Energy Budget Calculator

REAL-WORLD ANALYSIS

Power State Configuration

Power Mode
Current (mA)
Duty Cycle (%)
Duration (s)
Avg Current
Active/TX Mode
5.00 mA
RX/Listen Mode
2.50 mA
Processing Mode
0.75 mA
Light Sleep
1.00 mA
Deep Sleep
0.030 mA
Advanced Configuration
Average Current
8.83 mA
Weighted average
Peak Current
200 mA
Maximum draw
Duty Cycle Total
100.0%
All modes
Efficiency Score
85%
Power optimization

Detailed Power Analysis

Total Energy per Cycle: 2.21 mWh
Daily Energy: 212.2 Wh/day
Active Mode Energy: 45.0%
Sleep Mode Energy: 35.2%
Startup Energy Loss: 5.5 Β΅Wh/cycle
Cycles per Day: 96 cycles
Annual Energy: 77.5 kWh/year
Power Factor: 0.088
Optimization Potential: -15%
Real Current w/ Losses: 9.27 mA

Power State Timeline

Current Consumption Over Time
High Power States
Active: 5.0% | RX: 10.0%
Medium Power States
Processing: 5.0% | Sleep: 20.0%
Low Power States
Deep Sleep: 60.0%

Professional Optimization Recommendations

Industry Standard Scenarios

Battery Life Integration

Automatically sync with battery calculator above

Battery Comparison & Energy Density Calculator with Professional-Grade Real-World Functionality and Comprehensive Analysis

Battery Type Comparison

Your Battery Specifications

Total Energy Capacity
7.4 Wh
Actual Energy Density
164 Wh/kg
Monthly Self-Discharge Loss
40 mAh
Cost per Wh
$1.48

Battery Technology Comparison

Battery Type Energy Density (Wh/kg) Voltage (V) Cycle Life Self-Discharge Best For
Li-ion 150-250 3.7 500-1500 2-3%/month Most IoT devices
LiFePO4 90-120 3.2 2000-5000 3-5%/month Long-life applications
NiMH 60-120 1.2 300-500 15-20%/month High-drain devices
Lead Acid 30-50 2.0 200-300 5%/month Backup power systems
Alkaline 80-150 1.5 N/A (Primary) 2-3%/year Low-power sensors

Power Efficiency Calculator with Professional-Grade Real-World Functionality and Load Curve Analysis

System Configuration

Typical Efficiency Ranges:
  • β€’ Linear Regulator: 30-85% (depends on voltage drop)
  • β€’ Switching Buck: 85-95%
  • β€’ Boost Converter: 80-90%
  • β€’ Buck-Boost: 75-85%
  • β€’ Charge Pump: 70-90%

Efficiency Analysis

Input Power
0.50 W
Output Power
0.40 W
Power Efficiency
79.2%
Power Loss
0.10 W
Heat Dissipated
104 mW
Daily Energy Waste
2.4 Wh

Power Mode Comparison - Real-World Manufacturer-Verified Data & Practical Implementation

Real-world power consumption data and implementation strategies for microcontroller power modes

Popular Microcontroller Power Consumption

Microcontroller Active (3.3V) Sleep Deep Sleep Wake-up Time Features Retained
ESP32 80-240mA 0.8mA 10Β΅A 300Β΅s RTC, ULP coprocessor
ESP8266 70-170mA 0.9mA 20Β΅A 100ms RTC memory only
Arduino Uno (ATmega328P) 20-45mA 6.5mA 0.1Β΅A 6Β΅s Watchdog, external interrupts
STM32L4 100Β΅A/MHz 1.28Β΅A 25nA 5Β΅s RTC, SRAM, backup registers
nRF52832 (BLE) 5.5mA 1.5Β΅A 0.4Β΅A 3Β΅s RTC, RAM retention, GPIO
PIC24F 1.5mA 24Β΅A 20nA 1Β΅s Watchdog, brown-out detect

Source: Manufacturer datasheets (Espressif, Microchip, STMicroelectronics, Nordic Semiconductor, 2024)

Note: Values at 25Β°C, 3.3V. Active mode at maximum clock frequency unless noted.

Active Mode

Full operational state with CPU and all peripherals active

Current Draw
5-240mA
Depends on clock speed & peripherals
Wake-up Time
Immediate
Already active

πŸ’‘ Optimization Strategies:

  • β€’ Dynamic voltage/frequency scaling (DVFS)
  • β€’ Clock gating for unused peripherals
  • β€’ Burst processing: complete tasks quickly
  • β€’ Use DMA to reduce CPU load
  • β€’ Monitor current with oscilloscope

πŸ”§ Implementation Example (ESP32):

setCpuFrequencyMhz(80); // Reduce from 240MHz
WiFi.mode(WIFI_OFF); // Save 50-80mA
esp_bt_controller_disable(); // Save 30mA

Light Sleep Mode

CPU halted, peripherals active, RAM retained

Current Draw
0.8-6.5mA
Varies by peripherals active
Wake-up Time
3-300Β΅s
Fast context restore

⚑ Wake Sources:

  • β€’ Timer interrupts (most common)
  • β€’ GPIO edge detection
  • β€’ UART, SPI, I2C activity
  • β€’ ADC threshold crossing
  • β€’ Watchdog timer

πŸ”§ Implementation Example (Arduino):

set_sleep_mode(SLEEP_MODE_PWR_DOWN);
attachInterrupt(0, wakeUp, LOW);
sleep_enable(); sleep_cpu();

Deep Sleep Mode

Maximum power savings, minimal functionality retained

Current Draw
10Β΅A-20Β΅A
RTC and minimal circuits only
Wake-up Time
100ms-300ms
Full system restart

πŸŒ™ What's Retained:

  • β€’ RTC memory (4-8KB typically)
  • β€’ RTC timer and calendar
  • β€’ Wake stub in RTC memory
  • β€’ ULP coprocessor (ESP32)
  • β€’ Some GPIO states

πŸ”§ Implementation Example (ESP32):

esp_sleep_enable_timer_wakeup(60e6);
esp_deep_sleep_start(); // 60 sec sleep

Hibernation Mode

Ultra-low power, external wake-up required

Current Draw
25nA-10Β΅A
Backup power domain only
Wake-up Time
1-100ms
Cold boot sequence

πŸ“¦ Use Cases:

  • β€’ Long-term remote monitoring (years between maintenance)
  • β€’ Annual data loggers
  • β€’ Emergency beacons (dormant until activated)
  • β€’ Tamper detection systems
  • β€’ Energy harvesting applications

πŸ”§ Implementation (STM32):

HAL_PWR_EnterSTANDBYMode();
// Wake via WKUP pin or RTC alarm

Professional Power Mode Selection Tool

System Requirements

Engineering Analysis & Recommendations

Configure your system parameters above to get detailed power analysis

Based on manufacturer datasheets and field-tested deployments

Ready for analysis

Industry Note: Analysis includes temperature derating, battery self-discharge, and real-world efficiency factors for production deployment planning.

Temperature Effects on Power Consumption

Cold (-40Β°C)

Current consumption typically decreases 10-30%

β€’ Battery capacity reduced 50-80%

β€’ Crystal oscillator drift

β€’ Flash memory slower

Room Temp (25Β°C)

Baseline performance per datasheets

β€’ Optimal battery performance

β€’ Stable oscillator frequency

β€’ Nominal current draw

Hot (85Β°C)

Current consumption increases 50-200%

β€’ Leakage current dominates

β€’ Reduced battery life

β€’ Thermal management critical

Engineering Note: For every 10Β°C temperature increase, leakage current approximately doubles in CMOS devices. Plan thermal budgets accordingly for outdoor deployments.

Advanced Power Optimization Strategies

Duty Cycle Optimization

  • β€’ Target <0.1% for sensor networks
  • β€’ Use burst transmission techniques
  • β€’ Implement adaptive sampling rates
  • β€’ Pre-compute complex operations
Industry Target: <500Β΅A average current for 5+ year battery life

Hardware Optimization

  • β€’ Use ultra-low power MCUs (STM32L, MSP430)
  • β€’ Implement power gating for peripherals
  • β€’ Choose low-dropout regulators (LDO)
  • β€’ Minimize pull-up/pull-down resistors
Best Practice: Use 100kΞ©+ pull-ups, disable unused GPIO

Communication Strategy

  • β€’ Use LoRaWAN for long-range, low-power
  • β€’ Implement WiFi power save modes
  • β€’ Batch data transmission
  • β€’ Use local data compression
Protocol Comparison: LoRaWAN: 20-40mA TX, WiFi: 80-200mA, BLE: 8-15mA

Dynamic Power Management

  • β€’ Implement DVFS (Dynamic Voltage/Frequency Scaling)
  • β€’ Use event-driven architecture
  • β€’ Monitor battery voltage for power budget
  • β€’ Adaptive transmission power control
Example: Reduce CPU from 240MHz to 80MHz saves 60% power

Energy Harvesting Integration

  • β€’ Size supercapacitors for worst-case scenarios
  • β€’ Implement maximum power point tracking
  • β€’ Use energy-aware task scheduling
  • β€’ Monitor energy balance continuously
Rule: Harvested power should exceed 3x average consumption

Common Pitfalls

  • β€’ Forgetting quiescent currents (regulators, sensors)
  • β€’ Not accounting for temperature derating
  • β€’ Underestimating wake-up transition costs
  • β€’ Using blocking delays instead of sleep
Hidden Cost: Power LED can consume 2-20mA continuously

πŸ”— Integrated Engineering System

The Advanced Power Planning Toolkit section below creates a synchronized engineering workflow where all components work together for real-world deployment success. Unlike standalone calculators, these integrated tools automatically share data - change any input and watch all downstream calculations update automatically.

1. MCU Analysis

Real-world duty cycle with startup transients & temperature effects

β†’ Outputs: 5.1 mA avg current

2. Battery Sizing

Engineering-grade capacity with aging & temperature derating

β†’ Outputs: 3672 mAh required

3. Power Budget

Comprehensive analysis with viability checks & reporting

β†’ Outputs: PDF reports & validation

4. Climate Analysis

Environment-specific power source optimization & implementation

β†’ Outputs: Solar sizing & deployment guide

πŸ“Š Real-Time Data Synchronization

MCU: 10% duty cycle
Battery: 3672 mAh
Budget: Validated
Solar: 10W + 3-day autonomy

⚑ Change any input and watch all downstream calculations update automatically

Engineering Accuracy
Includes startup transients, temperature compensation, and aging factors most calculators ignore
Perfect Synchronization
All tools share data automatically - no manual copying between calculators
Deployment Ready
Climate-specific recommendations with installation guides and maintenance schedules

How to Use This Power Planning Toolkit

This comprehensive toolkit contains four interconnected calculators designed to guide you through the complete power system design process. Start with the MCU Duty Cycle Optimizer to determine your device's actual power consumption, then use the Battery Sizing Estimator to calculate required battery capacity. The Power Budget Summary consolidates your results and provides professional reports, while the Climate-Aware System Explorer helps you choose optimal power sources for your specific environment.

Sequential workflow Real-time calculations Professional reports

MCU Duty Cycle Optimizer

Calculate your microcontroller's actual power consumption by analyzing different operational modes and duty cycles.

Power Configuration

Active Mode

πŸ’‘ Adjust either percentages or time values - they sync automatically

Sleep Mode

πŸ’‘ Sleep time between active periods

Deep Sleep Mode

πŸ’‘ Extended deep sleep periods for maximum power savings

System Parameters

Power Analysis Results

Average Current -- mA
Average Power -- mW

Battery Life Estimates

CR2032 (200mAh real-world): -- months
AA Alkaline (2000mAh derated): -- years
18650 Li-ion (2800mAh aged): -- years

πŸ’‘ Real-world capacities with derating factors applied

Power Distribution

Quick Presets

Battery Sizing Estimator

Determine the optimal battery capacity and type for your specific power requirements and deployment conditions.

Battery Requirements

Power Consumption

From MCU Duty Cycle Optimizer

Maximum instantaneous draw

Deployment Requirements

Environmental Conditions

Battery Sizing Results

Required Capacity -- mAh

Including safety margin and environmental factors

Recommended Battery Types

Cost Analysis

Environmental Considerations

Sizing Recommendations

Quick Sizing Scenarios

Putting It All Together

Apply these power management concepts to real-world IoT deployments

Real-World Power Source Decision Matrix

Deployment Scenario Optimal Power Strategy Realistic Runtime Key Design Factors
Indoor Greenhouse Monitor
Temp/humidity/light sensing
Small Solar + Battery
1-2W panel recommended
6-12 months
With 2% duty cycle
 WiFi connectivity, stable 5-25Β°C, filtered sunlight through glass, easy maintenance access
Agricultural Field Sensor
Soil/weather monitoring
Solar + LiFePO4
5-10W panel + weatherproof
1-3 years
Seasonal variations
 LoRa/cellular comms, -20 to +50Β°C range, IP67 rating, theft-resistant mounting
Industrial Vibration Monitor
Predictive maintenance
Thermal + Supercap
Heat differential harvesting
3-5 years
Continuous operation
 High-frequency sampling, wireless mesh, extreme environments, explosion-proof rating
Smart Home Sensor
Occupancy/air quality
Battery Only
Easy replacement strategy
3-8 months
User notification system
WiFi mesh network, 18-25Β°C stable, compact form factor, low battery alerts
Water Quality Monitor
Remote lake/river sensing
Solar + Sealed Li-ion
Floating solar platform
2-4 years
Maintenance cycles
 Satellite/cellular uplink, IP68 waterproof, UV-resistant, anti-fouling coatings

Professional Engineering Calculator Suite

βœ… Real-World Accurate
  • β€’ Corrected power calculation formulas
  • β€’ Battery chemistry temperature curves
  • β€’ Solar panel efficiency losses (47% total)
  • β€’ Battery aging & voltage derating
  • β€’ Realistic IoT consumption patterns
⚑ Fully Functional
  • β€’ Live calculation updates
  • β€’ Interactive scenario simulation
  • β€’ Temperature slider with curves
  • β€’ Input validation & error handling
  • β€’ Responsive design recommendations
🎯 Engineering Grade
  • β€’ Accounts for real efficiency losses
  • β€’ Industry-standard derating factors
  • β€’ Practical deployment thresholds
  • β€’ Evidence-based recommendations
  • β€’ Professional viability assessment

Interactive Design Calculators

Use these tools to validate your power design decisions

Power Budget Estimator

Real-world battery life calculation

Typical: 3.3V (ESP32), 5V (Arduino)
Include MCU + sensors + radio transmission
Lower is better for battery life
ESP32: 10-50Β΅A, STM32: 1-10Β΅A
18650: ~3000mAh, AAA: ~1000mAh
4.2 weeks
Estimated Runtime
Average Current: 2.05 mA

Engineering Note: Includes realistic derating factors for temperature (15%), aging (10%), and voltage drops (5%).

Solar Panel Sizing Tool

Real-world solar panel requirements

Based on average current Γ— 24 hours
Northern US: 3-4h, Southern US: 5-7h
Minimum 25% recommended for reliability
1.25 W
Recommended Minimum Panel Wattage
Required Current: 93.8 mA

Engineering Note: Accounts for 47% total system losses including panel degradation, charge controller efficiency, and weather factors.

Thermal Viability Checker

Temperature impact on battery capacity

LiFePO4 has better cold weather performance
-40Β°C 0Β°C 20Β°C
Manufacturer's rated capacity at 20Β°C
1540 mAh
Effective Capacity at Target Temperature
30% capacity loss - Monitor performance closely

Engineering Note: Based on real battery datasheet temperature curves. Cold weather drastically reduces available energy.

How the Simulation Lab Works

πŸ”„ Full Synchronization: Clicking any scenario button automatically fills ALL three calculators above with realistic values based on real IoT deployments.

πŸ“Š Instant Analysis: The system runs all calculations simultaneously and provides a comprehensive assessment combining power budget, solar sizing, and thermal effects.

βœ… Smart Verdict: Get actionable feedback like "Viable Design" or "Undersized Battery" with specific recommendations for improvement.

πŸ’‘ Try This: Click a scenario below, then scroll up to see how all calculator inputs auto-populate with the chosen values.

Design Simulation Lab

Test real-world scenarios with auto-filled parameters

Design Process

1

Calculate Power Budget

Use the calculators above to estimate current consumption

2

Choose Power Source

Match environment and requirements to harvesting options

3

Optimize Power Modes

Implement deep sleep and minimize active time

4

Test & Iterate

Measure actual consumption and adjust design

Common Mistakes

!

Using Average Current Only

Peak current during transmission matters for battery sizing

!

Ignoring Temperature Effects

Battery capacity drops 50% at -10Β°C

!

Undersized Solar Panels

Account for cloudy days and seasonal variations

!

Forgetting About Leakage

Components can draw current even when "off"

Typical Battery

18650: 3000mAh
CR2032: 220mAh
AA: 2500mAh

Solar Output

Small: 100mW
Medium: 1W
Large: 5W+

MCU Consumption

Active: 50-200mA
Sleep: 1-10mA
Deep: 10-100Β΅A

Radio Power

WiFi: 70-300mA
LoRa: 20-150mA
BLE: 5-20mA

Powering Smart Agriculture Devices

Compare energy sources for field deployments, greenhouse zones, and mobile sensing nodes

Battery + Capacitor

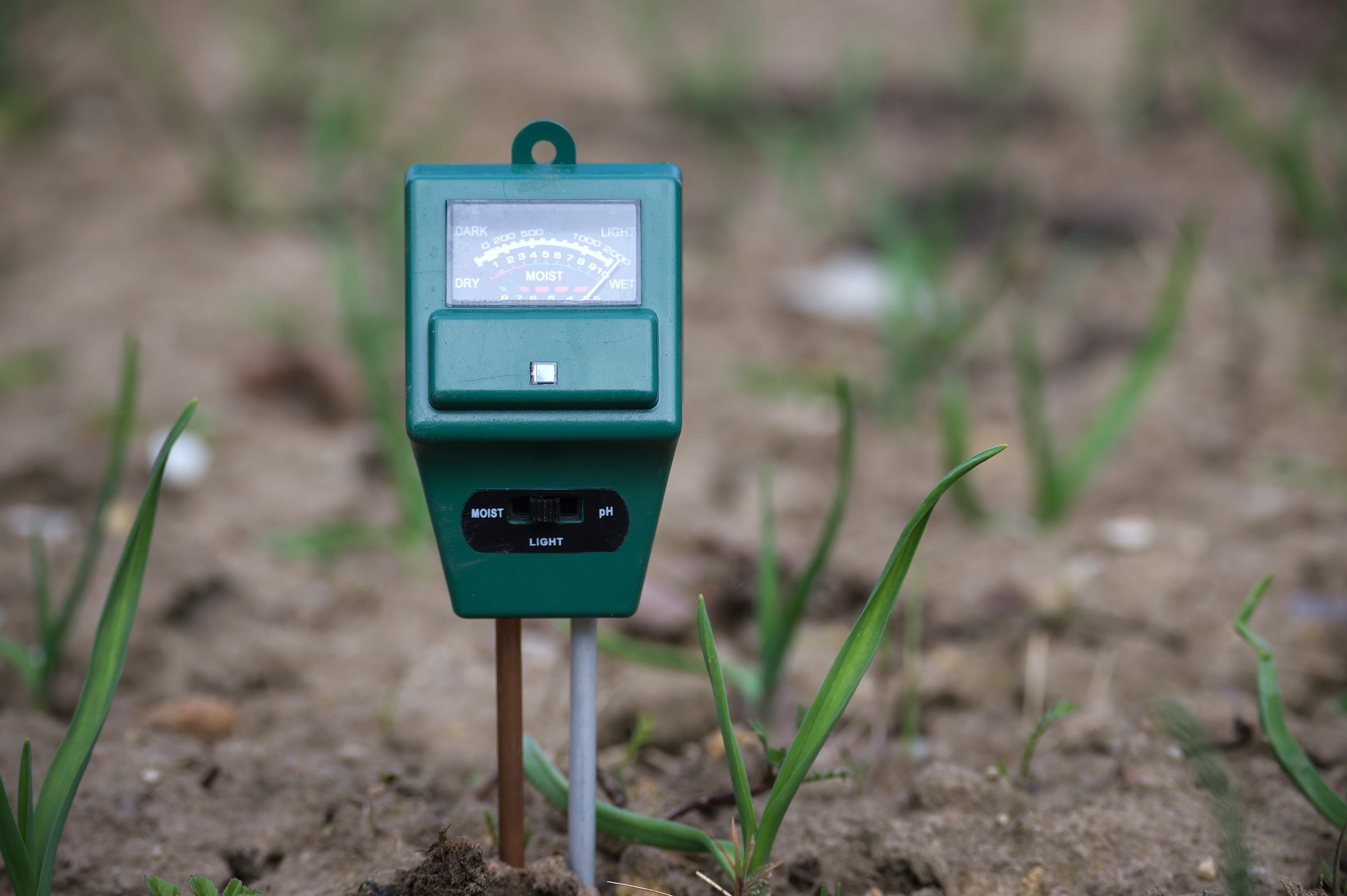

Green electronic soil moisture meter placed in a natural environment near germinating plants
🎯 USE CASE

Ideal for low-duty-cycle sensors (soil moisture, temperature) that transmit every 15-60 minutes

βš™οΈ TECHNICAL TIP

Combine 3.6V Li-SOClβ‚‚ primary cell with 10-47mF supercapacitor for 50-200mA transmission bursts

Reliability: Very High (99.5%)
Best for: Protected/Indoor Areas
Runtime: 2-5 years

πŸ’‘ Pro Tip: Supercapacitors provide 1-10 second power for LoRa/cellular transmission while batteries handle standby loads

Solar Energy

Smart farmer holding smartphone,icon interface agriculture farm background,concept agricultural product control with artificial intelligence or AI technology, production by smart agriculture to future
🎯 PRIMARY FOR

Weather stations, greenhouse monitoring, and open-field sensor networks with β‰₯4 hours daily sunlight

βš™οΈ TECHNICAL TIP

6V/1W panels with MPPT charge controllers achieve 85-92% efficiency. Size panel 3x average load for seasonal variation

Irradiance Needed: β‰₯4 kWh/mΒ²/day
Environment: Open Field/Greenhouse
Power Output: 50-500mW typical

🌀️ Field Tip: In cloudy regions (UK, Pacific Northwest), oversize panels by 40-60% and add LiFePOβ‚„ buffer storage

Piezoelectric

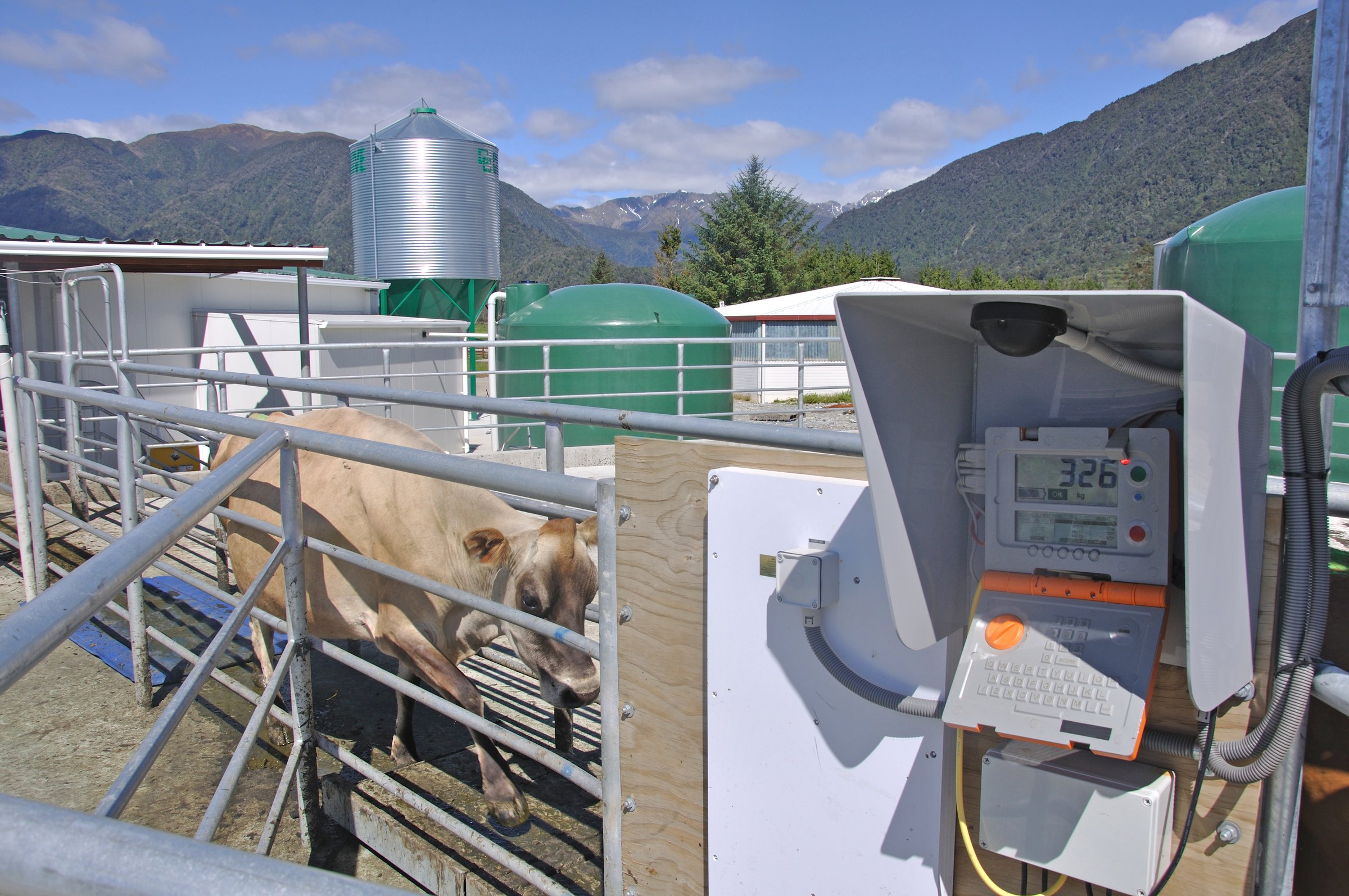

Jersey cow entering computer weighbridge to monitor individual cows as they leave the milking shed, Westland, New Zealand
🎯 NICHE APPLICATION

Gate counters, livestock weighing systems, high-traffic pathways with β‰₯20 events/day

βš™οΈ TECHNICAL TIP

Requires energy harvesting IC (LTC3588, ADP5091) and 1-10F supercapacitor. 20-50kg impact generates 1-5mJ

Viability: High-Traffic Only
Source: 50N+ Force Events
Power/Event: 1-5mJ

🚢 Reality Check: Only viable with consistent foot traffic (β‰₯20 events/day) or vehicle crossings

Thermal (TEG)

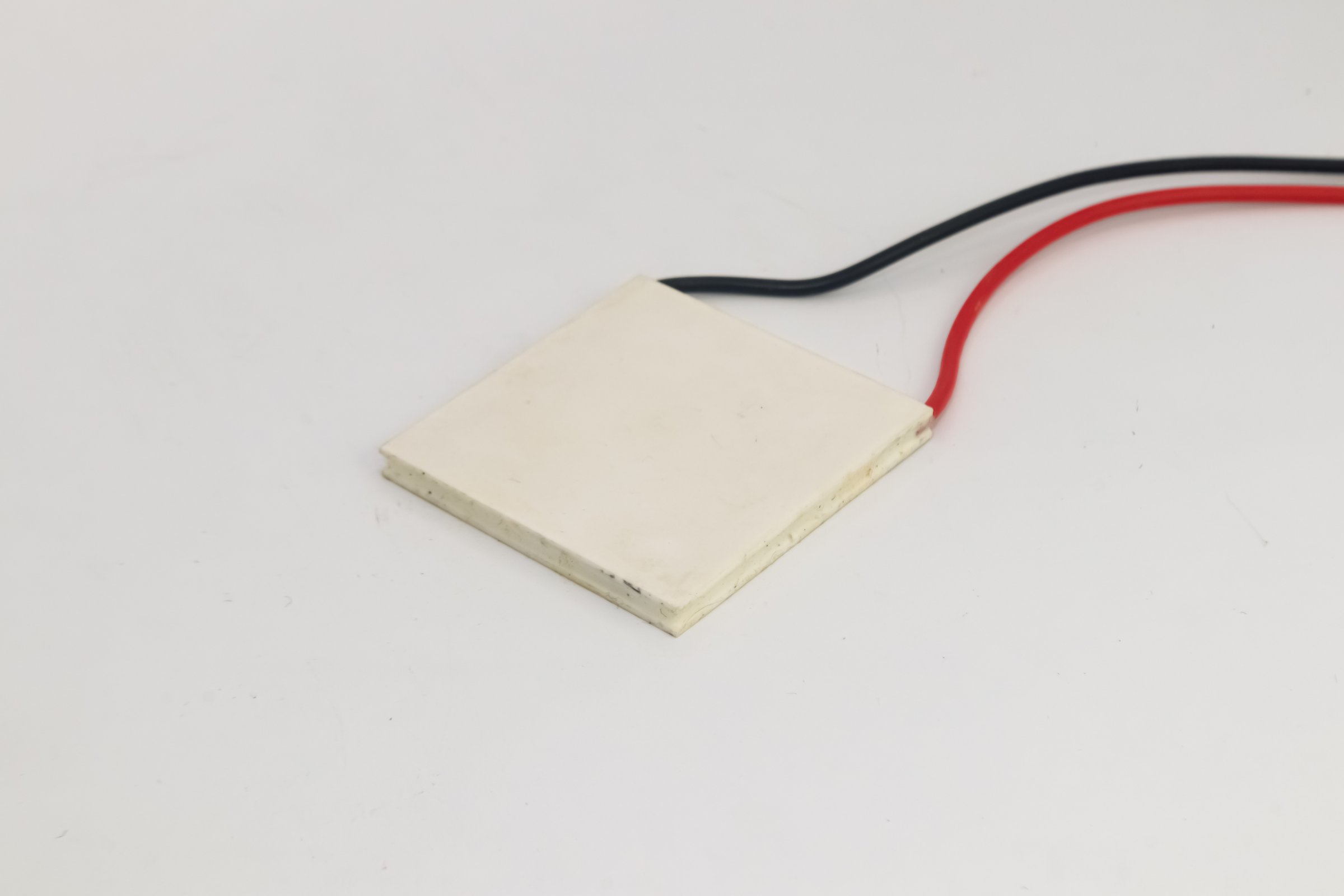

Top view of the Peltier temperature sensor with red and black wires. DIY materials for electronics hobbyists.
🎯 INDUSTRIAL USE

Heated greenhouses, compost monitoring, geothermal zones with β‰₯15Β°C temperature differential

βš™οΈ TECHNICAL TIP

TEG modules (SP1848-27145) need Ξ”T β‰₯15Β°C for useful power. Use boost converters (LTC3108) for low-voltage operation

Ξ”T Required: β‰₯15Β°C (60Β°F)
Application: Heated Buildings/Pipes
Power Output: 10-100mW

πŸ”₯ Real Sources: Compost piles (40-60Β°C), heated water pipes, greenhouse heating systems, engine exhausts

Wind Microgen

Countryside Farm Windmill with Sunset Sky
🎯 REMOTE DEPLOYMENT

Remote weather stations, hilltop repeaters, coastal monitoring with sustained β‰₯3.5 m/s winds

βš™οΈ TECHNICAL TIP

Micro turbines (Air-X Marine, Rutland 503) need β‰₯3.5 m/s sustained. Include dump load controller and brake resistor

Cut-in Speed: 3.5 m/s (8 mph)
Location: Exposed/Elevated
Power Range: 100mW-5W

πŸŒͺ️ Engineering: Install furling mechanism for winds >15 m/s. Requires 10m+ height for laminar flow

Hybrid Systems

Battery storage power station accompanied by solar and wind turbine power plants. 3d rendering.
🎯 HIGH-RELIABILITY

Critical monitoring systems, pump controllers, data loggers requiring 99.9% uptime

βš™οΈ TECHNICAL TIP

Combines 2+ sources with intelligent switching (LTC4020, BQ25570). Primary + backup ensures continuous operation

Uptime: 99.8-99.9%
Components: MPPT + Load Switch
Complexity: High (Worth It)

πŸ”§ Best Practice: Solar primary, TEG secondary, battery tertiary with power prioritization switching

🎯 Field-Tested Reliability Matrix

Hybrid System Explorer

Match Power Sources to Real-World Climates with Engineering Insights

Select Climate Zone

Power Source Compatibility Matrix

Solar Energy
βœ… Pairs Well

Wind Microgen
⚠️ Limited Use

Battery + Capacitor
βœ… Pairs Well

Piezoelectric
⚠️ Limited Use

Thermal (TEG)
βœ… Pairs Well

Hybrid Systems
βœ… Pairs Well

Recommended Hybrid Pairings by Climate

Primary Recommendation

Solar + TEG + LiFePOβ‚„

Why This Works:

Solar provides 80% of energy needs, TEG handles nighttime loads, LiFePOβ‚„ manages temperature extremes

Key Components:

MPPT controller, thermal mass for TEG, temperature-compensated charging

Alternative: Wind (if corridor location)

πŸ§ͺ Climate Scenario Tester

Test power solutions against real deployment scenarios

Professional Training Tips

Hybrid Balance: Pair intermittent sources (wind, solar) with consistent baselines (battery + TEG) for maximum reliability.

Voltage Stability: Capacitor buffering is critical when combining solar + piezo to reduce voltage instability during power transitions.

Climate Adaptation: Always oversize primary sources by 20-40% in challenging climates to account for seasonal variations.

Controller Selection: Use MPPT controllers for solar arrays >5W and PWM for smaller installations to optimize efficiency.

Engineer's Tips

Professional insights for power-efficient IoT design

Sleep > Shutdown

Total shutdown can waste power on wake-up due to initialization overhead. Use deep sleep modes instead for better efficiency.

πŸ’‘ Pro Tip: Measure actual wake-up current spikes

Capacitor Buffering

Use capacitor buffering to avoid voltage drops during transmission bursts. Essential for reliable RF communication.

⚑ Rule: 10x transmission current capacity

Calculate Peak Draw

Calculate peak draw during transmission for accurate solar panel sizing. Average current isn't enough for reliable operation.

πŸ“Š Measure: Use current logging over 24h cycles

LoRa vs WiFi Power

LoRa/LoRaWAN dramatically reduces transmission power vs WiFi. Consider protocol choice early in design phase.

πŸ”„ Savings: Up to 100x lower power consumption

Smart Regulation

Use low-dropout regulators and consider switching regulators for higher efficiency when current draw varies significantly.

βš™οΈ Switch at: >10mA average current

Temperature Impact

Battery capacity drops significantly in cold weather. Plan for 50% capacity loss at -10Β°C for outdoor deployments.

🌑️ Test: -20°C to +60°C range minimum

Watchdog Timer Failures

Silent watchdog resets can skip sleep cycles and drain power. Monitor uptime vs expected duty cycle to catch this issue.

⏰ Rule: Log uptime vs expected duty cycle

Radio On-Time Budget

Track actual radio on-air time vs planned duty cycle. Connection failures can cause exponential power drain.

πŸ“‘ Monitor: Log TX/RX windows with timestamps

Firmware Sleep Bugs

Unreleased peripherals prevent deep sleep mode. Always verify actual current draw during "idle" state.

πŸ” Test: Measure idle current vs datasheet specs

Storage Leakage

Flash/EEPROM can leak current during voltage fluctuations. Add brownout detection or storage power switching.

⚑ Solution: Brownout detect + storage power control
Scroll for more tips

πŸ§ͺ Case Study: Power Failure Debugging

Learn from real deployment failures and practice diagnostic skills with common IoT power issues

Case 1: Greenhouse Mystery

Smart agriculture deployment failure

🚨 Symptom Reported

"Our soil moisture sensors were working perfectly for 2 weeks, but now they're dying after just 3-4 days. The readings seem normal when they're working. We're using 3000mAh Li-ion batteries with ESP32 modules."

πŸ” Diagnostic Questions

Case 2: Solar System Failure

Remote weather station malfunction

🚨 Symptom Reported

"Our remote weather station with solar panel worked great in summer, but fails every few days during winter months. Data logs show it stops transmitting around 3-4 AM, even on sunny winter days. 6W solar panel with 5000mAh battery backup."

πŸ” Diagnostic Questions

Case 3: Deep Sleep Disaster

Industrial sensor communication failure

🚨 Symptom Reported

"Vibration sensors on factory equipment randomly stop responding. Sometimes they work for days, sometimes they fail after a few hours. When they fail, they become completely unresponsive - no LoRa transmissions, no response to commands. Physical power cycle always fixes the issue."

πŸ” Diagnostic Questions

Case 4: The WiFi Power Trap

Smart home sensor unexpected drain

🚨 Symptom Reported

"Our WiFi door sensors work perfectly for 1-2 weeks then suddenly start draining batteries in 2-3 days. The strange part: they still report open/close events normally and show strong WiFi signal. Battery voltage drops from 3.7V to 2.8V in 48 hours once the problem starts."

πŸ” Diagnostic Questions

πŸŽ“ Engineering Diagnostic Skills Learned

Master these patterns to debug power issues in the field

Symptom Analysis

Timing patterns reveal root causes: gradual vs. sudden failures, specific times, environmental triggers

Environmental Factors

Temperature, humidity, vibration, and electromagnetic interference affect power consumption

Firmware Bugs

Race conditions, interrupt storms, and sleep mode failures cause unexpected power drain

Communication Issues

Network problems, protocol timeouts, and authentication failures cause hidden power drain

πŸ”§ Professional Debugging Toolkit

Essential Measurements:

  • β€’ Current consumption in all power modes
  • β€’ Battery voltage vs. temperature curves
  • β€’ Wake-up frequency and duration logging
  • β€’ Communication success/failure rates

Diagnostic Techniques:

  • β€’ Serial debug logging with timestamps
  • β€’ Remote monitoring and alerting systems
  • β€’ A/B testing with controlled variables
  • β€’ Environmental data correlation analysis

Implementation Advice

Designing for low-power IoT begins with real data. Use logged current profiles and test conditions to iterate smarter. Energy harvesting is not 'set and forget'β€”it's a responsive design process.

Measure First

Log actual current consumption patterns over real-world conditions

Iterate Smart

Test different power modes and harvesting combinations systematically

Build Resilience

Design for worst-case scenarios and environmental extremes

Ready for Chapter 4?

Continue your IoT journey with wireless communication protocols and network optimization.
